Description

These anchoring clamps are made of one opened conical fibre glass reinforced body, a pair of plastic wedges and a flexible bail. Different sizes offer a wide range of gripping capacities and mechanical resistances to fit the various ADSS cable designs.

The ADSS series of anchoring clamps allow an easy and quick securing of Ø 6 to 20 mm aerial circular fibre optic cables (ADSS) on short spans (up to 150 meters).

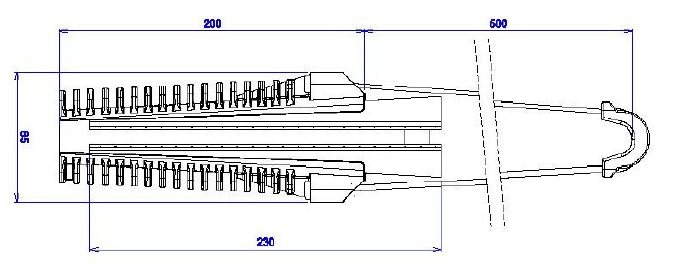

Dimension

Technical Characteristics

Model	Suitable cable dia. (mm)	Materials		Breaking load	Weight
		Body / Wedges / Thimble	Bail
ACADSS10	6~10mm	UV Protected Thermoplastic	Stainless Steel	5000N	0.4kg±0.01
ACADSS12	8~12mm
ACADSS14	10~14mm
ACADSS16	12~16mm
ACADSS18	14~18mm
ACADSS20	16~20mm

Installation

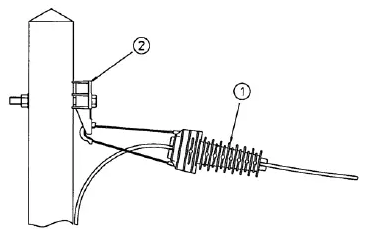

Consisting of: 1 anchoring clamp (1) + 1 universal pole bracket UPB (2)



Single dead-ending

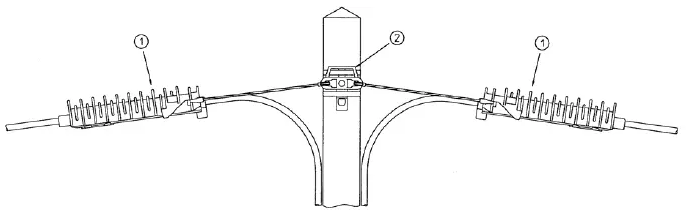

Consisting of: 2 anchoring clamp (1) + 1 universal pole bracket UPB (2)

Double dead-ending
