Description

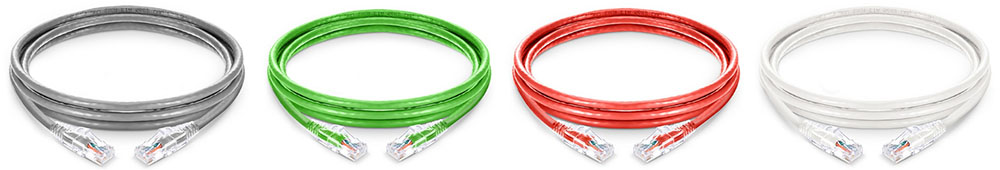

Cat6 Snagless Unshielded (UTP) Ethernet Network Patch Cable, 24AWG, 1000Base-T
Cat6 network patch cable is the cost-effective solution for indoor data center applications, supporting up to 1000BASE-T within 100m and 10 Gigabit Ethernet over the limited distance specified in the industry.
And it is fully backward compatible with all the previous categories.
The FS cat6 patch cables conductor apply oxygen-free copper with high electrical conductivity and low signal transmission attenuation. The sheath material is new environmentally friendly material PVC CM,
which is durable, flame-retardant, resistant to bending.
Product Details
|
Cable Type |
Cat6 Snagless |
Shielding Type |
Unshielded (UTP) |
|
Cable Jacket |
PVC CM (Round) |
Length |
6in (0.15m) |
|
Conductor Material |
Oxygen-free Copper |
Conductor Type |
Stranded |
|
Data Rate Support |
1000Base-T and Maximum to 10GBase-T |
Standard Bandwidth |
250MHz |
|
Gauge (AWG) |
24 (7/0.20mm) |
Cable Outer Diameter (mm) |
6.1 ± 0.4 |
|
Max Transmission Distance |
100m |
Twisted Pairs |
4 Pairs |
|
Wire Scheme |
T568B, Straight |
Standard |
ISO/IEC 11801, ANSI/TIA-568-C.2 |
|
Operating Temperature |
-20 to 60°C (-4 to 140°F) |
Installation Temperature |
-30 to 50°C (-22 to 122°F) |
* 250MHz is the standard bandwidth, 550MHz is a reference bandwidth. Our package is marked with 250MHz.
