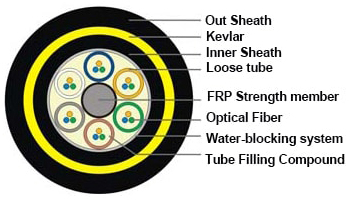

Double Layer Aerial ADSS Cable is up to 144 optical fibres in jelly-filled loose tubes, laid up around a central non-metallic strength member. The cable is water blocked, aramid yarn reinforced and polyethylene sheathed. Surface printing for the cable includes sequential length marking at one-metre intervals. Mainly installed at existing 220kV or lower voltage power lines . Two Jacket and stranded loose tube design .
Application: duct,and aerial.
Double Layer Aerial ADSS CableTechnical Parameter:
Ref.
Outer
Diameter
(mm)
Ref.
Weight
(kg/km)
Rec. Daily
Max.
Working
Tension
(kN)
Max Allowable
Working Tension
(kN)
Break
Strength
(kN)
Strength
Member
CSA
(mm2)
Modulus of
Elasticity
CSA
(kN/mm2)
Heat
Expansion
Coefficient
(x10- 6/K)
Suitable Span
(NESC Standard,m)
PE
Jacket
AT
Jacket
A
B
C
D
12.5
125
136
1.5
4
10
4.6
7.6
1.8
160
100
140
100
13.0
132
142
2.25
6
15
7.6
8.3
1.5
230
150
200
150
13.3
137
148
3.0
8
20
10.35
9.45
1.3
300
200
290
200
13.6
145
156
3.6
10
24
13.8
10.8
1.2
370
250
350
250
13.8
147
159
4.5
12
30
14.3
11.8
1.0
420
280
400
280
14.5
164
177
5.4
15
36
18.4
13.6
0.9
480
320
460
320
14.9
171
185
6.75
18
45
22.0
16.4
0.6
570
380
550
380
15.1
179
193
7.95
22
53
26.4
18.0
0.3
670
460
650
460
15.5
190
204
9.0
26
60
32.2
19.1
0.1
750
530
750
510
