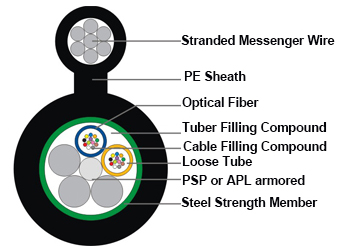

The Aluminium Polyethylene Laminates (APL) protects the cable from rodent and termites. The PE Sheath provides UV and Chemical/Oil resistance. Steel Wire as central strength member, stranded loose tubes construction with 100% filling compound to prevent ingress, Aluminium Polyethylene Laminate (APL) for Armouring, Stranded Wires as self-support and overall PE Outer sheath.
Application: Outdoor Self-Supporting Aerial installation
Armored Figure 8 Cables Technical Parameters
|
Cable Type (Increased by 2 fibers) |
Fiber Count |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
|
GYTC8S/A 2 ~ 30 |
2 ~ 30 |
9.5 x 19.1 |
160.0 |
2000/6000 |
300/ 1000 |
|
GYTC8S/A 32 ~ 36 |
32 ~ 36 |
10.1 x 19.7 |
170.0 |
2000/6000 |
300/ 1000 |
|
GYTC8S/A 38 ~ 60 |
38 ~ 60 |
10.8 x 20.4 |
180.0 |
2000/6000 |
300/ 1000 |
|
GYTC8S/A 62 ~ 72 |
62 ~ 72 |
12.4 x 22.0 |
195.0 |
2000/6000 |
300/ 1000 |
|
GYTC8S/A 74 ~ 96 |
74 ~ 96 |
13.1 x 22.7 |
222.0 |
2000/6000 |
300/ 1000 |
|
GYTC8S/A 98~ 120 |
98~ 120 |
15.7 x 22.3 |
238.0 |
2000/6000 |
300/ 1000 |
|
GYTC8S/A 122~ 144 |
122~ 144 |
15.5 x 25.1 |
273.0 |
2000/6000 |
300/ 1000 |
