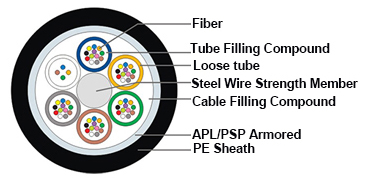

In the GYTA cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. An APL/PSP is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.
Application: Duct/Aerial
Technical Parameters
|
Cable Type (increased by 2fibers) |
Fiber Count |
Tubes+Fillers |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
Bending Radius Static/Dynamic mm |
|
GYTA /S2 ~ 30 |
2 ~ 30 |
5 |
9.5 |
80 |
600/1500 |
300/1000 |
10D/20D |
|
GYTA/S 32 ~ 36 |
32 ~ 36 |
6 |
9.7 |
97 |
600/1500 |
300/1000 |
10D/20D |
|
GYTA/S 38 ~60 |
38 ~60 |
5 |
10.5 |
109 |
600/1500 |
300/1000 |
10D/20D |
|
GYTA /S62 ~72 |
62 ~72 |
6 |
11.5 |
126 |
600/1500 |
300/1000 |
10D/20D |
|
GYTA /S74 ~96 |
74 ~96 |
8 |
13.2 |
153 |
600/1500 |
300/1000 |
10D/20D |
|
GYTA /S98 ~120 |
98 ~120 |
10 |
14.6 |
182 |
600/2000 |
300/1000 |
10D/20D |
|
GYTA /S122 ~ 144 |
122 ~ 144 |
12 |
16.5 |
221 |
600/2500 |
300/1000 |
10D/20D |
|
GYTA/S 146 ~ 216 |
146 ~ 288 |
18 |
16.5 |
221 |
600/2500 |
300/1000 |
10D/20D |
