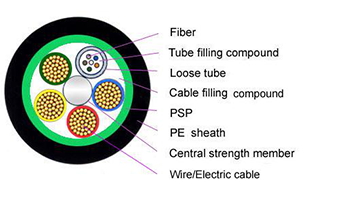

The fibers,250m,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The cable core is FRP or metallic strength member( some structures need add PE as bedding layer in the strength member). Electric wires and tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. After two sides PSP are longitudinally applied over the inner sheath ,the cable is completed with PE or LSZH outer sheath.
Characteristics
Good flexibility and mechanical properties
Opto and electricity integrated, fully save pipeline resources
Electric and optical cable maintain relatively independent structure, easy to import,
export and link when installation
Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are
multi-one network, saves costs
Larger operating temperature range
Larger construction temperature range
Cable diameter and bending radius are small, freely install in small space and compatible with
optical signal and electric energy transmission
Technical Parameters
Item
Technical Specifications
Remark
Bending Radius(mm)
Dynamic
30D
Static
20D
Tensile Strength(N)
Short Term
3000
Long Term
1500
(N/100mm2)
Short Term
3000
Long Term
1000
Operating Temperature range
Electric wire
-15¡æ¡«+70¡æ
Comply
Other materials except electric wire
-40¡æ¡«+70¡æ
Water-blocking / Waterproof Performance
No water leak if immersed in water for long time
Except
No electric leakage
Construction Temperature range
-20¡æ¡«+60¡æ
Except electric wire
0¡æ¡«+60¡æ
electric wire
Weight
347kg/km £¨RV-2*2.5mm£©
Mechanical Properties
Stretching, crushing, impacting, repeated bending, torsion, winding and loss comply with YD / T 901-2001
Applicable System of Laying
Suitable for pipe, channel, cable trenches, aerial, direct burial and so on
Crush Resistance
with GB5023-1997
wire conductor
382kg/km £¨RV-4*2.5mm£©
502kg/km £¨RV-6*2.5mm£©
628kg/km £¨RV-8*2.5mm£©
Storage/Operating Temperature : -20¡æ to + 60¡æ
