GYTC8S fiber optic cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a PSP/APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.

Characteristics

1. Cable section is “8”,with 7*1.2mm steel wires;
2. PSP corrugated steel tape;
3. Steel wire strength member;
4. PBT loose tube,each tube max 12 fibers.

Applications

Easy aerial installation,because of fig8 self supporting design,with simple and easy installation tools & accessories.

Standards

GYTC8YA/S cable complies with Standard YD/Y 1155-2001 as well as IEC 60794-1
Storage/Operating Temperature: -40°C to + 70°C

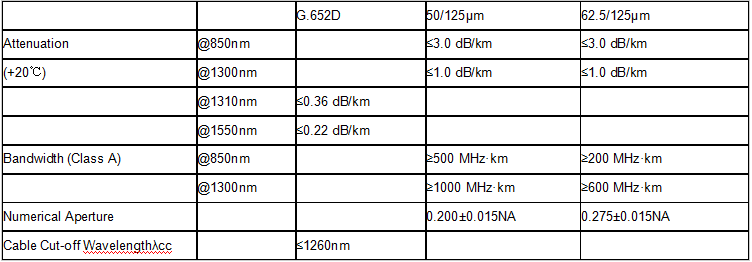

Technical Parameters
