The flat twin cable uses Φ600μm or Φ900μm tight buffered fibre as optical communication medium, the tight buffered fibre wrapped with a layer of aramid yarn as strength member, such unit is extrude with a layer as inner sheath. The cable is completed with an outer sheath.

Characteristics：

1.Flat structure ensure compact arrangement of fibres and good compression

2.Excellent flexibility and facilitate to link

3.Excellent mechanical performance

4.Excellent temperature performance

5.Excellent flame-retardant performance and free to choose different flame-retardant grades sheath

6.Limited shrinkage

7.Different fiber types available

8.Special dimension available on request

Installation：Indoor

Applications：For direct connector assembly, interconnect between instruments, communication equipments

Standards：YD/T 1285.3 / IEC 60794-2-50

Temperature Range：Transportation：-40℃~+70℃；Installation：-5℃~+50℃；In use：-20℃~+70℃

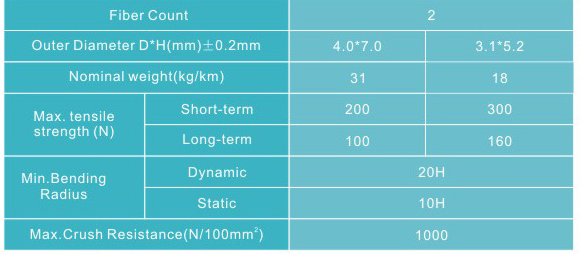

Technical parameter:
