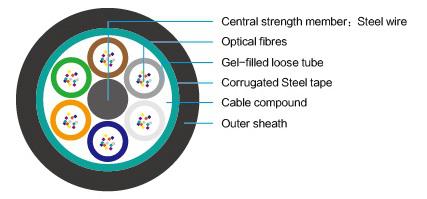

The fibres are positioned in a loose tube made of PBT. The tube is filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and the fillers) are stranded around the strength member into a compact and circular core. The PSP is longitudinally applied over the cable core, which is filled with filling compound to protect it from water ingress. The cable is completed with a LSZH sheath.
Characteristics£º
1.Excellent mechanical and temperature performance
2.Special tube filling compound ensure a critical protection of fibre and resist the water
3.Single steel wire as the central strength member to withstand axial loads
4.100% core filling water prevent cable jelly to ensure the cable watertight
5.Corrugated steel tape longitudinal cover cable core and provide good crush resistance
6.Outer sheath protects cable from ultraviolet radiation
Installation£ºDuct, Non self-supporting aerial
Applications£ºLong distance, LAN communication
Standards£ºYD/T 901 / IEC 60794-3-10
Temperature Range£ºTransportation£º-40¡æ~+70¡æ£»Installation£º-5¡æ~+50¡æ£»In use£º-40¡æ~+70¡æ
Technical parameter:
|
Fiber count(core) |
2-30 |
32-36 |
38-40 |
42-48 |
50-60 |
62-72 |
74-84 |
86-96 |
98-108 |
110-120 |
122-132 |
134-144 |
|
Outer diameter£¨mm£© |
10.2 |
10.6 |
11.4 |
11.8 |
12.4 |
13.2 |
14.2 |
15.0 |
16.0 |
16.7 |
17.7 |
18.8 |
|
Cable weigh£¨kg/km£© |
110 |
125 |
140 |
160 |
165 |
180 |
200 |
220 |
245 |
265 |
295 |
325 |
|
Minimum tensile strength£¨N£© |
Short-term£º 1500 |
|||||||||||
|
Long-term£º 600 |
||||||||||||
|
Minimum crushing£¨N/100mm£© |
Short-term£º 1000 |
|||||||||||
|
Long-term£º 300 |
||||||||||||
|
Bending radius |
Static£º10 times of diameter Dynamic£º20 times of diameter |
|||||||||||
|
Standard length for delivery£¨km£© |
2¡«6 |
|||||||||||
|
Temperature range£¨0C£© |
£40¡«£«60 |
|||||||||||
