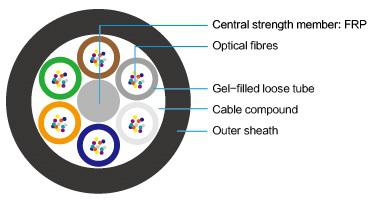

The fibres are positioned in a loose tube made of PBT. The tube is filled with a water-resistant filling compound. A fibre reinforce plastic locates in the center of core as a non-metallic strength member. The tubes (and the fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress. The cable is completed with a LSZH sheath.

Characteristics：

1.Excellent mechanical and temperature performance

2.Special tube filling compound ensure a critical protection of fibre and resist the water

3.100% core filling water prevent cable jelly to ensure the cable watertight

4.Single FRP as the central strength member to withstand axial loads

5.Outer sheath protects cable from ultraviolet radiation

Installation：Duct, Non self-supporting aerial

Applications：Long distance, LAN communication

Standards：YD/T 901 / IEC 60794-3-10

Temperature Range：Transportation：-40℃~+70℃；Installation：-5℃~+50℃；In use：-40℃~+70℃
