OPPC(opticalphase conductor)is a new kind of electric optical cable mainly use for 110kv below distribution network of suburd and countryside.

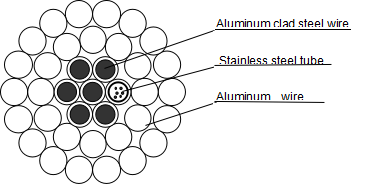

Cable Structure:
Structure characteristics and application
1:Mechanical and electrical characteristics match with adjacent two-phase conductor
2:Continuous heat-resistance
3:Used in medium and high pressure transmission lines with no ground wire
4:Used in transmission lines with unsuitablity to set up OPGW or ADSS
Typical Design
|
Code name |
Type of matched conductor |
Structure（NO./Dia.-AS） |
Area |
Outer |
Linear |
Rated |
DC resistance |
Current Capacity |
||||||||
|
Center |
1st Layer |
2nd Layer |
3rd Layer |
40℃~70℃ |
40℃~80℃ |
40℃~90℃ |
||||||||||
|
SA1 |
Fiber unit |
SA1 |
Aluminum |
Aluminum |
SA1 |
Aluminum |
Total |
mm |
kg/km |
kN |
Ω/km |
A |
A |
A |
||
|
n/mm-AS |
n/mm-Cores |
n/mm-AS |
n/mm |
n/mm |
mm2 |
mm2 |
mm2 |
|||||||||
|
OPPC-16B1- |
LGJ-95/20 |
1/2.4-20AS |
1/2.3-16B1 |
5/2.3-20AS |
9/3.5 |
- |
25.30 |
86.59 |
111.89 |
14.0 |
430 |
40.9 |
0.303 |
233 |
277 |
319 |
|
OPPC-36B1- |
LGJ-95/55 |
1/3.4-14AS |
1/3.2-24B1 |
5/3.3-14AS |
13/3.0 |
- |
51.84 |
91.89 |
143.73 |
16.0 |
650 |
85.5 |
0.277 |
230 |
270 |
301 |
|
OPPC-16B1- |
LGJ-120/20 |
1/2.4-20AS |
1/2.3-24B1 |
5/2.3-20AS |
8/4.2 |
- |
25.30 |
110.84 |
136.14 |
15.4 |
490 |
45.5 |
0.242 |
265 |
315 |
365 |
|
OPPC-24B1- |
LGJ-120/25 |
1/2.5-20AS |
1/2.4-24B1 |
5/2.4-20AS |
8/4.35 |
- |
27.53 |
118.89 |
146.42 |
16.0 |
530 |
49.3 |
0.225 |
285 |
348 |
399 |
|
OPPC-16B1- |
LGJ-150/25 |
1/2.4-20AS |
1/2.3-16B1 |
5/2.3-20AS |
11/2.6 |
17/2.6 |
25.30 |
148.66 |
173.96 |
17.4 |
595 |
54.5 |
0.184 |
331 |
407 |
469 |
|
OPPC-24B1- |
LGJ-150/35 |
1/2.6-14AS |
1/2.5-24B1 |
5/2.5-14AS |
12/2.5 |
18/2.5 |
29.85 |
147.26 |
177.11 |
17.6 |
640 |
65.7 |
0.188 |
330 |
405 |
466 |
|
OPPC-16B1- |
LGJ-185/25 |
1/2.4-20AS |
1/2.3-16B1 |
5/2.3-20AS |
10/3.0 |
16/3.0 |
25.30 |
183.78 |
209.08 |
19.0 |
695 |
65.8 |
0.150 |
379 |
468 |
540 |
|
OPPC-24B1- |
LGJ-185/45 |
1/2.85-20AS |
1/2.7-24B1 |
5/2.8-20AS |
12/2.8 |
18/2.8 |
37.17 |
184.73 |
221.9 |
19.65 |
795 |
79.7 |
0.147 |
379 |
469 |
541 |
|
OPPC-24B1- |
LGJ-240/30 |
1/2.5-20AS |
1/2.4-24B1 |
5/2.4-20AS |
9/3.6 |
15/3.6 |
27.53 |
244.29 |
271.82 |
21.7 |
885 |
76.6 |
0.114 |
445 |
552 |
639 |
