Stranding Stainless Steel Tube OPGW Cable:
Stranding SST OPGW is cable product that produced by way of comprehensive stranding the ACS wires and SST optical unit which replace one or some of ACS wire of traditional ground wire cable,It realized the function of optical fiber communication and has bigger diameter and more optical fiber compared with center SST OPGW.
Cable Structure:

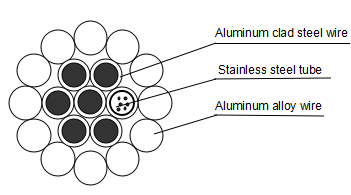

Structure Stainless Steel Tube OPGW Cable:
1.Big diameter and more optical fiber.
2.Big tensile strength and short-circuit capacity,arrive the best balance of machanical and electrical properties.
3.One or more optical unit.
4.Best design of stranding,obtain secondary optical fiber extra length.
5.Strands piles can be two or three,the wire can be ACS wire and/or the combination of aluminium alloy wire and aluminium wire.
Typical Design:
|
Code name |
structure(No.×Dia./AS) |
Area mm2 |
Dia. |
Linear mass |
Rated strength |
DC resistance |
Short current capacity |
|||||
|
Center |
Iner layer |
Fiber unit |
Outer layer |
AA |
AS |
Total |
mm |
Kg/km |
KN |
Ω/km |
KA2S |
|
|
OPGW-24B1-103[103;62.5] |
1×2.5/27AS |
5×2.4/27AS |
1×2.4/24B1* |
10×3.1/27AS |
0 |
103 |
103 |
13.5 |
640 |
105.7 |
0.63 |
62.5 |
|
OPGW-24B1-103[103;75.9] |
1×2.5/20AS |
5×2.4/20AS |
10×3.1/40AS |
0 |
103 |
103 |
13.5 |
552 |
83.8 |
0.49 |
75.9 |
|
|
OPGW-24B1-103[103;87.4] |
1×2.5/20AS |
5×2.4/20AS |
10×3.1/AA |
75.5 |
27.5 |
103 |
13.5 |
405 |
57.3 |
0.39 |
87.4 |
|
|
OPGW-24B1-89[89;46.4] |
1×2.6/27AS |
5×2.5/27AS |
1×2.5/24B1 |
12×2.5/27AS |
0 |
88.8 |
89 |
12.6 |
545 |
91.1 |
0.73 |
46.4 |
|
OPGW-24B1-89[89;50.3] |
1×2.6/30AS |
5×2.5/30AS |
12×2.5/30AS |
0 |
88.8 |
89 |
12.6 |
518 |
74.2 |
0.66 |
50.3 |
|
|
OPGW-24B1-89[89;62.9] |
1×2.6/20AS |
5×2.5/20AS |
12×2.5/AA |
58.9 |
29.9 |
89 |
12.6 |
376 |
55.4 |
0.47 |
62.9 |
|
|
OPGW-24B1-98[98;60.9] |
1×2.6/30AS |
5×2.5/30AS |
1×2.5/24B1 |
11×2.8/30AS |
0 |
97.6 |
98 |
13.2 |
567 |
81.6 |
0.6 |
60.9 |
|
OPGW-24B1-98[98;77.1] |
1×2.6/20AS |
5×2.5/20AS |
11×2.8/AA |
67.7 |
29.9 |
98 |
13.2 |
371 |
58 |
0.42 |
77.1 |
|
|
OPGW-24B1-110[110;71.7] |
1×2.6/27AS |
5×2.5/27AS |
1×2.5/24B1 |
10×3.2/27AS |
0 |
110.3 |
110 |
14 |
672 |
113.1 |
0.59 |
71.7 |
|
OPGW-24B1-110[110;77.7] |
1×2.6/30AS |
5×2.5/30AS |
10×3.2/30AS |
0 |
110.3 |
110 |
14 |
639 |
92.2 |
0.53 |
77.7 |
|
|
OPGW-24B1-110[110;86.9] |
1×2.6/20AS |
5×2.5/20AS |
10×3.2/40AS |
0 |
110.3 |
110 |
14 |
590 |
90 |
0.46 |
86.9 |
|
|
OPGW-24B1-110[110;100] |
1×2.6/20AS |
5×2.5/20AS |
10×3.2/AA |
80.4 |
29.9 |
110 |
14 |
434 |
61.7 |
0.36 |
100 |
|
|
OPGW-28B1-112[112;80.6] |
1×2.75/30AS |
5×2.7/30AS |
1×2.7/28B1 |
11×3.0/30AS |
0 |
112.3 |
112 |
14.15 |
650 |
93.9 |
0.52 |
80.6 |
|
OPGW-28B1-112[112;88.7] |
1×2.75/20AS |
5×2.7/20AS |
11×3.0/40AS |
0 |
112.3 |
112 |
14.15 |
609 |
94.2 |
0.46 |
88.7 |
|
|
OPGW-28B1-112[112;102.1] |
1×2.75/20AS |
5×2.7/20AS |
11×3.0/AA |
77.8 |
34.6 |
112 |
14.15 |
458 |
66.9 |
0.36 |
102.1 |
|
|
OPGW-28B1-103[103;68.4] |
1×2.8/30AS |
5×2.7/30AS |
1×2.7/28B1 |
12×2.7/30AS |
0 |
103.5 |
103 |
13.6 |
601 |
86.5 |
0.56 |
68.4 |
|
OPGW-28B1-103[103;85.6] |
1×2.8/20AS |
5×2.7/20AS |
12×2.7/AA |
68.7 |
34.8 |
103 |
13.6 |
435 |
64.6 |
0.4 |
85.6 |
|
|
OPGW-28B1-131[131;110] |
1×2.85/30AS |
5×2.7/30AS |
1×2.7/28B1 |
10×3.5/30AS |
0 |
131.2 |
131 |
15.25 |
756 |
109.7 |
0.45 |
110 |
|
OPGW-28B1-131[131;123.2] |
1×2.85/20AS |
5×2.7/20AS |
10×3.5/40AS |
0 |
131.2 |
131 |
15.25 |
697 |
106.7 |
0.39 |
123.2 |
|
|
OPGW-28B1-131[131;141.8] |
1×2.85/20AS |
5×2.7/20AS |
10×3.5/AA |
96.2 |
35 |
131 |
15.25 |
511 |
72.9 |
0.3 |
141.8 |
|
