OPGW-Center-2 Layer Fiber Optic Cable

Email Us Inquiry Us

OPGW-CENTER-2 Layer features a high optical fiber count OPGW providing excellent communication capabilities within a small overall diameter.

Installation of OPGW-CENTER-2 Laye is straight forward untilizing standard OPGW hardware and equipment.

OPGW -CENTER-2Layer is custom designed to satisfy each customers specified communication and groundwire requirements for short circuit current capacity, tensile strength, fiber count and fiber type while complying to ASTM, IEEE or IEC International Standards.

We provides with its products a comprehensive range of services, including OPGW hardware, installation supervision, type testing and training.

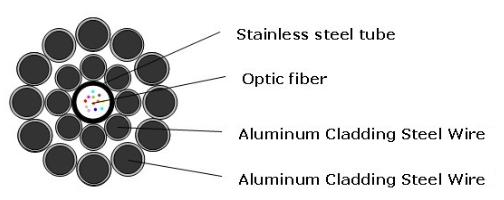

Cable Structure:


OPGW - CENTER-2Layer  provides the type and number of optical fibers needed to meet customers specific  requirements while complying to ITU-T Standards.
OPGW - CENTER-2Layer features optical fibers placed loosely in a hermetically sealed stainless steel tube containing a gel filling compound to form an optical unit.
The optical fibers have low signal attenuation and wide band width allowing for long distance, high capacity communication.
Optical fibers are free from crosstalk and are not subjected to electromagnetic interference and polarization. They provide secure high quality signal transmission.


Groundwire Design Features:

Aluminum-Clad Steel and Aluminum  Alloy wires are stranded around a central optical unit.

The Aluminum-Clad Steel wires and Aluminum Alloy wires provide the mechanical strength to withstand installation and operating conditions, while achieving the conductivity needed to control temperature rise during short circuit fault conditions.

Typical Design:

Code name

Fiber (Max)

Diameter

Weight

RBS

Short current capcacity

mm

in

kg/km

lbs/ft

kN

lbs

kA2s

OPGW-13.2-76

30

13.2

0.520

500

0.336

76

17088

50

OPGW-13.2-57

30

13.2

0.520

413

0.278

57

12816

64

OPGW-13.4-82

36

13.4

0.528

500

0.336

82

18437

70

OPGW-13.4-97

48

13.4

0.528

614

0.413

97

21810

78

OPGW-13.4-130

48

13.4

0.528

682

0.458

130

29230

54.7

OPGW-13.9-58

48

13.9

0.547

438

0.294

58

13041

89

OPGW-13.9-33

36

13.9

0.547

320

0.215

33

7420

108.3

OPGW-13.9-62

36

13.9

0.547

450

0.302

62

13941

86.7

OPGW-14.0-33

16

14.0

0.549

330

0.222

33

7420

110

OPGW-14.0-48.6

48

14.0

0.551

385

0.259

48.6

10343

100

OPGW-14.4-59

48

14.4

0.567

462

0.310

59

13266

115

OPGW-14.5-66

36

14.5

0.570

473

0.318

66

14840

102.4

OPGW-14.5-106

36

14.5

0.570

649

0.436

106

23834

72

OPGW-14.5-65

48

14.5

0.570

473

0.318

65

14615

102.4

OPGW-14.6-67.7

48

14.6

0.575

472

0.317

67.7

15222

125

OPGW-14.7-70

30

14.7

0.577

504

0.339

70

15739

115.5

OPGW-14.7-94

48

14.7

0.578

624

0.419

94

21136

95

OPGW-14.8-77

48

14.8

0.583

523

0.351

77

17313

119
