OPGW-Center-1 Layer Fiber Optic Cable

Email Us Inquiry Us

OPGW-CENTER-1 Layer is a kind of overhead grounding wire which take SST optical unit as the center,concentric stranding the ACS wires at outer layer according to certain lay ratio,It is widely used in modern information electric power system.

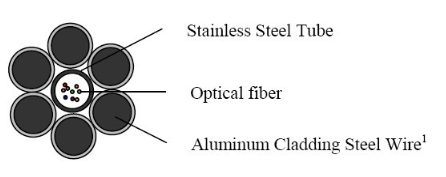

Cable Structure:

Both Aluminum Cladding Steel wire and Aluminum Alloy wire can be used.

Structure characteristics and application:

1.Small diameter and light weight,small short-circuit capacity.

2.Optical unit forms appropriate primary optical fiber extra length.

3.Characteristics of tension resistance,torsion resistance and side pressure resistance are not good enough.

4.Suitable for matching with GJ-35,GJ-50,GJ-70.

Typical Design:

Code name

Structure(No.*Dia./AS)
n*mm/AS

Area mm2

Dia.

Linear mass

Rated strength

DC resistance

Short current capcacity

Center

Outer layer

AS

Total

mm

Kg/km

KN

/km

KA2S

OPGW-24B1-42[54;8.4]

13.0/24B1

63.0/20AS

42.41

42

9

309

54

2.03

8.4

OPGW-24B1-42[43.5;10.6]

63.0/27AS

42.41

42

9

281

43.5

1.53

10.6

OPGW-24B1-42[35.5;11.5]

63.0/30AS

42.41

42

9

268

35.5

1.37

11.5

OPGW-30B1-48[61.4;10.9]

13.2/30B1

63.2/20AS

48.25

48

9.6

348

61.4

1.78

10.9

OPGW-30B1-48[49.5;13.7]

63.2/27AS

48.25

48

9.6

315

49.5

1.34

13.7

OPGW-30B1-48[40.3;14.9]

63.0/30AS

48.25

48

9.6

3.1

40.3

1.21

14.9

OPGW-30B1-51[63.9;12.3]

13.3/30B1

63.3/20AS

51.32

51

9.9

368

63.9

1.68

12.3

OPGW-30B1-51[52.7;15.5]

63.3/27AS

51.32

51

9.9

333

52.7

1.26

15.5

OPGW-30B1-51[42.9;16.8]

63.3/30AS

51.32

51

9.9

318

42.9

1.14

16.8

OPGW-30B1-51[33.2;20.8]

63.3/40AS

51.32

51

9.9

268

33.2

0.85

20.8

OPGW-36B1-54[67.8;13.9]

13.4/36B1

63.4/20AS

54.48

54

10.2

389

67.8

1.58

13.9

OPGW-36B1-54[55.9;17.5]

63.4/27AS

54.48

54

10.2

352

55.9

1.19

17.5

OPGW-36B1-54[45.5;19]

63.4/30AS

54.48

54

10.2

336

45.5

1.07

19

OPGW-36B1-54[35.2;23.4]

63.4/40AS

54.48

54

10.2

283

35.2

0.8

23.4

OPGW-40B1-58[69.6;15.6]

13.5/40B1

63.5/20AS

57.73

58

10.5

410

69.6

1.49

15.6

OPGW-40B1-58[59.2;19.6]

63.5/27AS

57.73

58

10.5

371

59.2

1.12

19.6

OPGW-40B1-58[48.3;21.3]

63.5/30AS

57.73

58

10.5

354

48.3

1.01

21.3

OPGW-40B1-58[37.3;26.3]

63.5/40AS

57.73

58

10.5

298

37.3

0.76

26.3

OPGW-48B1-61[73.7;17.5]

13.6/48B1

63.6/20AS

61.07

61

10.8

432

73.7

1.41

17.5

OPGW-48B1-61[62.7;22]

63.6/27AS

61.07

61

10.8

391

62.7

1.06

22

OPGW-48B1-61[51.1;23.8]

63.6/30AS

61.07

61

10.8

373

51.1

0.95

23.8

OPGW-48B1-61[39.5;29.5]

63.6/40AS

61.07

61

10.8

313

39.5

0.72

29.5

OPGW-50B1-65[76.6;19.5]

13.7/50B1

63.7/20AS

64.51

65

11.1

455

76.6

1.33

19.5

OPGW-50B1-65[66.2;24.5]

63.7/27AS

64.51

65

11.1

411

66.2

1

24.5

OPGW-50B1-65[53.9;26.6]

63.7/30AS

64.51

65

11.1

392

53.9

0.9

26.6

OPGW-50B1-65[41.7;32.9]

63.7/40AS

64.51

65

11.1

329

41.7

0.68

32.9

OPGW-54B1-68[80.8;21.7]

13.8/54B1

63.8/20AS

68.05

68

11.4

478

80.8

1.26

21.7

OPGW-54B1-68[69.8;27.3]

63.8/27AS

68.05

68

11.4

432

69.8

.0.95

27.3

OPGW-54B1-68[56.9;29.6]

63.8/30AS

68.05

68

11.4

412

56.9

0.86

29.6

OPGW-54B1-68[44;36.6]

63.8/40AS

68.05

68

11.4

346

44

0.64

36.6

OPGW-60B1-75[86.7;26.6]

14.0/60B1

64.0/20AS

75.4

75

12

527

86.7

1.14

26.6

OPGW-60B1-75[77.4;33.5]

64.0/27AS

75.4

75

12

476

77.4

0.86

33.5

OPGW-60B1-75[63;36.3]

64.0/30AS

75.4

75

12

453

63

0.77

36.3

OPGW-60B1-75[48.7;44.9]

64.0/40AS

75.4

75

12

380

48.7

0.58

44.9
